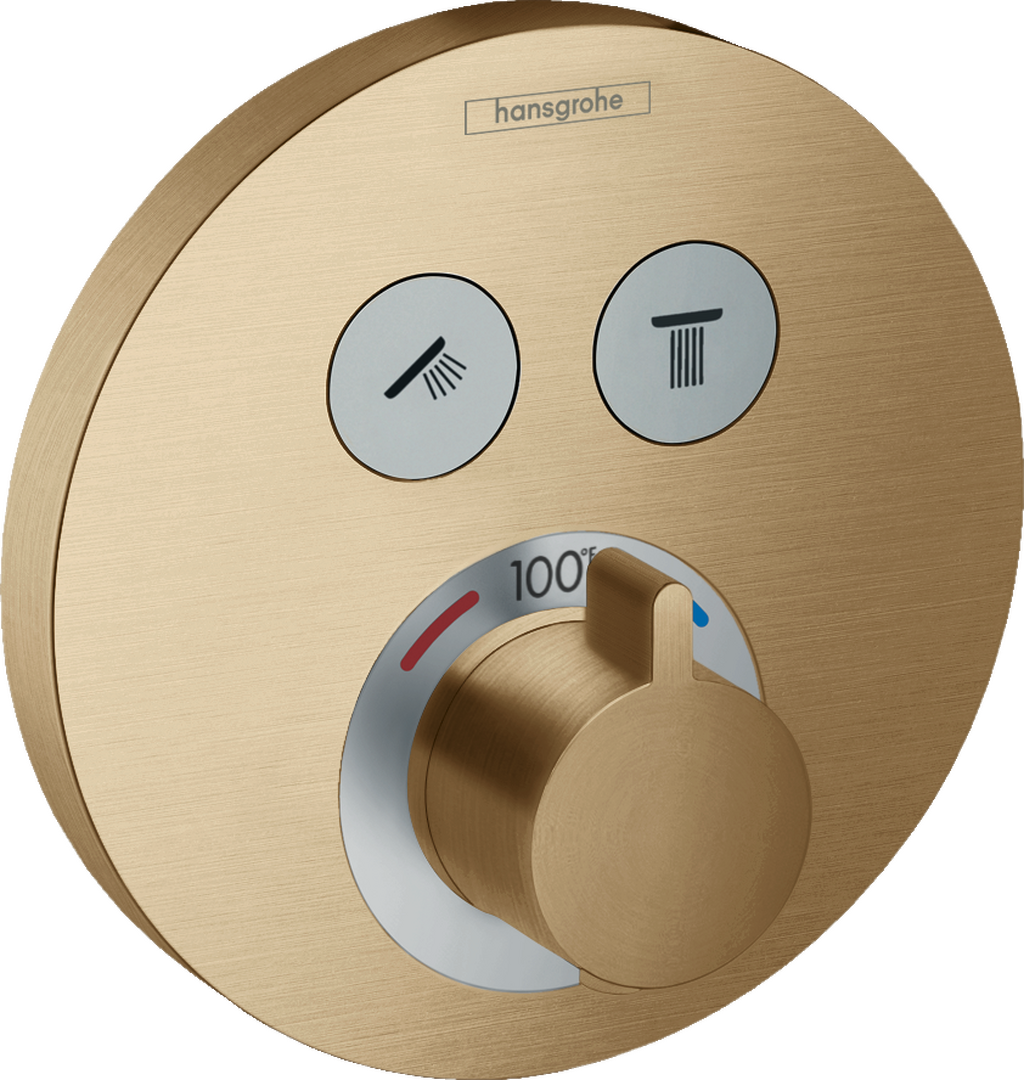

Model No. 15743141
Offering our customers the highest quality at all times is a fundamental part of the Hansgrohe company philosophy.
Planning data
Technical data
Instructions
| Item No. | DescriptionModel No. |
|---|
| j | symbol body shower93578880 |
| c | set of fixing screws97747000 |
| a | pushbutton93955880 |
| e | symbol head shower Rain large93571880 |
| k | symbol ON/OFF93579880 |
| h | symbol Mono93576880 |
| g | symbol Whirl93575880 |
| f | symbol Flood jet93574880 |
| d | brake disc92498000 |
| b | screw cover95181000 |
| i | symbol tub93577880 |
| 1 | non return valve97980000 |
| 2 | noise reduction94073000 |
| 3 | O-ring 16x298133000 |
| 4 | set of screws96525000 |
| 5 | O-ring 36x298156000 |
| 6 | shut off unit95758000 |
| 7 | nut98368000 |
| 8 | Select-adapter92219000 |
| 9 | set of symbols92218000 |
| 10 | thermostat cartridge98282001 |
| 11 | O-ring 20x1,598197000 |
| 12 | O-ring 25x1,598146000 |
| 13 | O-ring 25x2,592146000 |
| 14 | nut98913000 |
| 15 | sleeve92216140 |
| 16 | handle fixing set95843000 |
| 17 | holder for escutcheon98793000 |
| 18 | set of fixing screws96454000 |
| 20 | O-ring 44x498471000 |
| 21 | handle for thermostat92215141 |
| 22 | fit-up aid92540000 |
| 23 | compensation set 1°95521000 |
| 24 | extension 22 mm (Ø 150 mm)13597140 |
| 25 | extension 25 mm13595000 |
| 26 | symbol head shower Rain small93572880 |
| 27 | symbol handshower93573880 |
| 28 | non return valve (pressure-resistant up to 2 MPa)92594000 |
| 29 | nut and flange92696000 |
