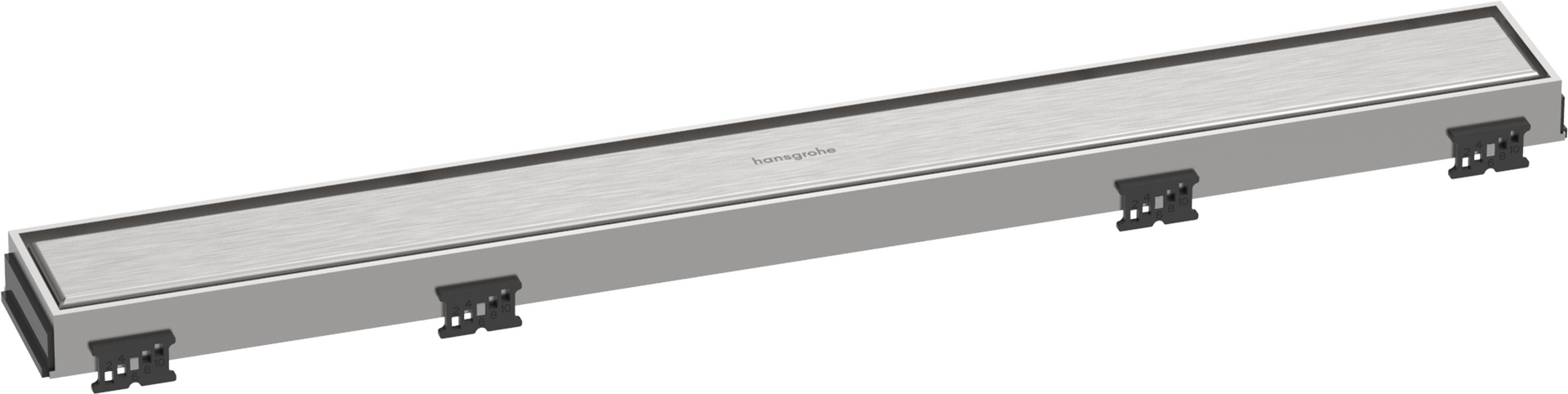

RainDrain Match Trim for 23 5/8" Rough with Height Adjustable Frame

Trim for 23 5/8" Rough with Height Adjustable Frame Trim for 23 5/8" Rough with Height Adjustable Frame
Change variant Trim for 23 5/8" Rough with Height Adjustable Frame

Select a Variant

Finish Brushed Stainless Steel

Model No. 56036801

USD  440.00 List price (U.S. dollars) is shown for comparison only. The actual retail price may be different from the price shown.
Online Retailers Find a local dealer
Remember product Product noted Product saved for 30 daysSee Wish List The product could not be saved. Please try again.
Compare Products Product added Product saved for 30 daysTo Product Comparison The product could not be saved. Please try again.

Choose Online Shop for

Recommendation

0 Results
Online Retailers

Innovative technologies

For a flush integration into the floor

For a flush integration into the floor

The shower drain is installed flush with the tiles. The level of the grate can be adjusted to different heights by using the height adjustment frame (Tile thickness 7-18 mm) even after the screed has been poured.
Easy to clean surface

Easy to clean surface

At some point, dirt and hair will build up in every shower drain. This high-quality linear drain is easy to clean: simply take off the cover using the tool provided and remove any residue in no time at all.

For a flush integration into the floor

For a flush integration into the floor

For a flush integration into the floor

The shower drain is installed flush with the tiles. The level of the grate can be adjusted to different heights by using the height adjustment frame (Tile thickness 7-18 mm) even after the screed has been poured.

Easy to clean surface

Easy to clean surface

Easy to clean surface

At some point, dirt and hair will build up in every shower drain. This high-quality linear drain is easy to clean: simply take off the cover using the tool provided and remove any residue in no time at all.
Trust in highest quality

Hansgrohe, Inc. Limited Warranty

 Offering our customers the highest quality at all times is a fundamental part of the Hansgrohe company philosophy.

Alternative products

Related products

Trim for 27 5/8" Rough with Height Adjustable Frame

RainDrain Match Trim for 27 5/8" Rough with Height Adjustable Frame

USD  584.00
Trim for 31 1/2" Rough with Height Adjustable Frame

RainDrain Match Trim for 31 1/2" Rough with Height Adjustable Frame

USD  609.00
Trim for 35 1/4" Rough with Height Adjustable Frame

RainDrain Match Trim for 35 1/4" Rough with Height Adjustable Frame

USD  650.00
Trim for 39 3/8" Rough with Height Adjustable Frame

RainDrain Match Trim for 39 3/8" Rough with Height Adjustable Frame

USD  660.00
Trim for 47 1/4" Rough with Height Adjustable Frame

RainDrain Match Trim for 47 1/4" Rough with Height Adjustable Frame

USD  711.00
Trim for 59 1/8" Rough with Height Adjustable Frame

RainDrain Match Trim for 59 1/8" Rough with Height Adjustable Frame

USD  889.00
Trim Flex for 23 5/8" Rough Cut to Size and Tileable

RainDrain Rock Trim Flex for 23 5/8" Rough Cut to Size and Tileable

USD  273.00
Trim Flex for 27 5/8" Rough Cut to Size and Tileable

RainDrain Rock Trim Flex for 27 5/8" Rough Cut to Size and Tileable

USD  286.00
Trim Flex for 31 1/2" Rough Cut to Size and Tileable

RainDrain Rock Trim Flex for 31 1/2" Rough Cut to Size and Tileable

USD  323.00
Trim Flex for 35 1/4" Rough Cut to Size and Tileable

RainDrain Rock Trim Flex for 35 1/4" Rough Cut to Size and Tileable

USD  330.00
Trim Flex for 39 3/8" Rough Cut to Size and Tileable

RainDrain Rock Trim Flex for 39 3/8" Rough Cut to Size and Tileable

USD  343.00

Article features

  • Consists of: design trim, height adjustable frame, wall installation flange, hair catcher
  • Mounting type: wall-mounted, free in the floor
  • Tileable on the back side
  • Easy to clean surface
  • Easy adjustment to tile thickness with height adjustable frame (0.27– 0.7")
  • Floor thickness: up to 1.57"
  • Suitable for any type of tile
  • Up to 60 l/min drainage capacity
  • Where to use: new construction, renovation
  • Grate removal tool allows easy removal of the trim
  • Tile inlay depth: 0.47"
  • Grate material: Stainless Steel 304 (1.4301)
  • Suitable for primary and secondary drainage
  • Frame width: 2.44"

Download center

Product Data Sheet (PDF)

Planning data

BIM data

Technical data

Instructions

Certificates

Certificates

Certificates

Minimum Advertised Price (MAP)

Minimum Advertised Price (MAP)
Certificates

cUPC® Listed

cUPC® Listed products comply with applicable sections of the Uniform Plumbing Code (UPC®), National Plumbing Code of Canada, and International Plumbing Code (IPC®), as well as applicable sections of IAPMO Z124.1.2-2005 / CSA B45.5-2002

cUPC® Listed
cUPC® Listed

Installation information

Installation guide

Download the guide and get going

Download Guide
Professional installation

Leave it to the professionals

Find installer
Spare part finder

We've got all the extra parts you'll need

Find spare parts

Information

Please always observe the safety and installation information for your product. You will find these details within the assembly instructions.

Required parts

Rough 2" outlet 23 5/8" (600mm)

RainDrain Rough 2" outlet 23 5/8" (600mm)

USD  450.00

Scope of supply

  • trim
  • hair catcher
  • Mounting Material
  • grate removal tool
  • wall mounting set
  • Assembly instructions
