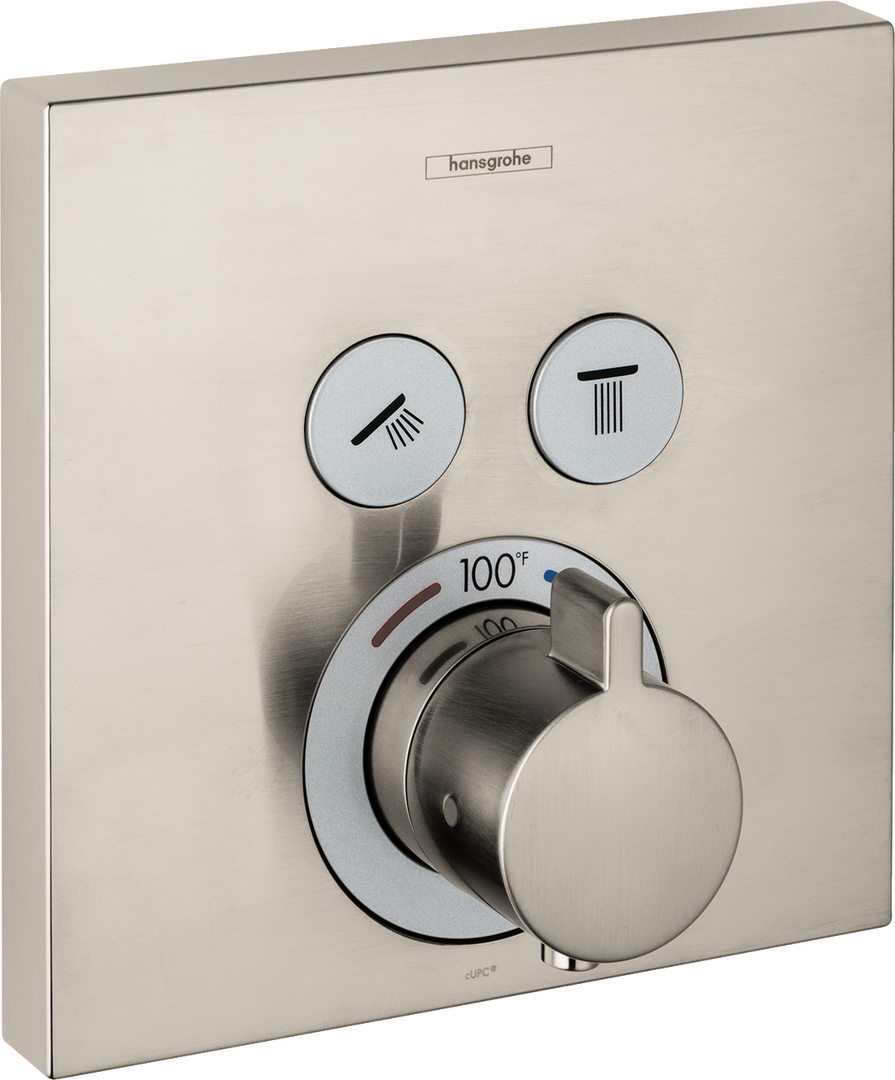

Model No. 15763821
Offering our customers the highest quality at all times is a fundamental part of the Hansgrohe company philosophy.
Planning data
BIM data
Technical data
Instructions
| Item No. | DescriptionModel No. |
|---|
| a | shut off unit (special)92361000 |
| b | Grease90920000 |
| 1 | non return valve97980000 |
| 2 | noise reduction94073000 |
| 3 | O-ring 16x298133000 |
| 4 | set of screws96525000 |
| 5 | O-ring 36x298156000 |
| 6 | shut off unit95758000 |
| 7 | nut98368000 |
| 8 | Select-adapter92219000 |
| 9 | thermostat cartridge98282000 |
| 10 | O-ring 20x1,598197000 |
| 11 | O-ring 25x1,598146000 |
| 12 | O-ring 25x2,592146000 |
| 13 | nut98913000 |
| 14 | sleeve92216820 |
| 15 | handle fixing set95843000 |
| 16 | holder for escutcheon98793000 |
| 17 | set of fixing screws96454000 |
| 18 | escutcheon 155 / 155 mm92217821 |
| 19 | O-ring 44x498471000 |
| 20 | handle for thermostat92215821 |
| 21 | fit-up aid92540000 |
| 22 | non return valve (pressure-resistant up to 2 MPa)92594000 |
| 23 | nut and flange92696000 |
| 24 | compensation set 1°95521000 |
| 25 | extension 25 mm13595000 |
| 26 | extension 22 mm13593820 |
