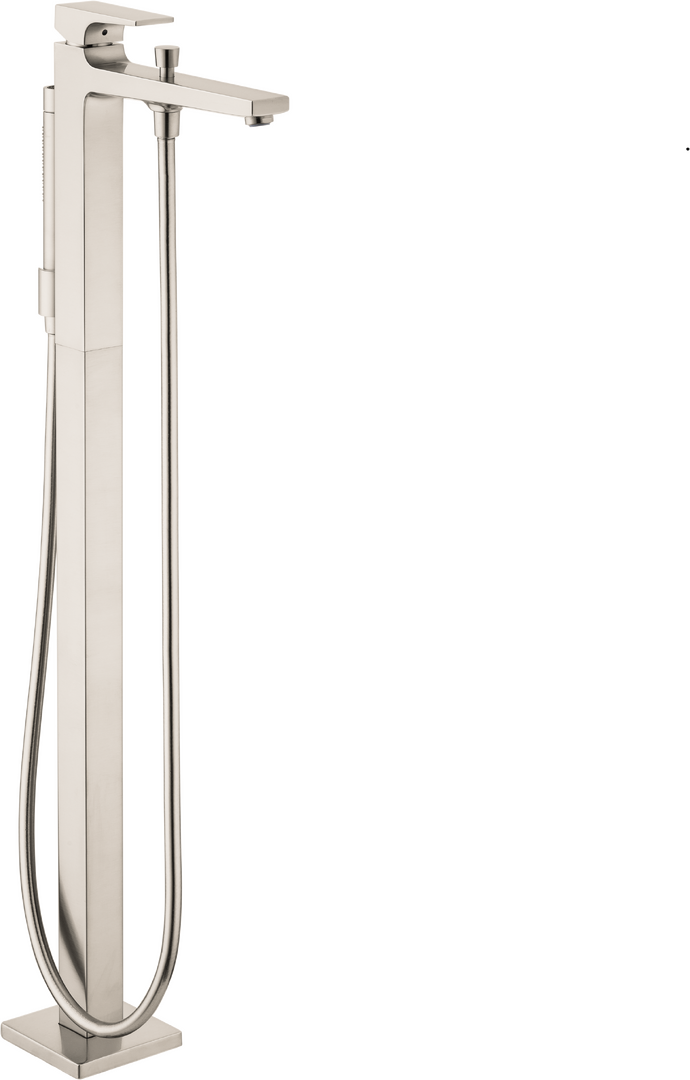

Model No. 32532821
Offering our customers the highest quality at all times is a fundamental part of the Hansgrohe company philosophy.
Please always observe the safety and installation information for your product. You will find these details within the assembly instructions.
| Item No. | DescriptionModel No. |
|---|
| 1 | handle93075820 |
| 2 | screw cover96338000 |
| 3 | flange97406820 |
| 4 | nut97209000 |
| 5 | O-Ring 32x298193000 |
| 6 | cartridge, assy92730000 |
| 7 | locking screw for handle95140000 |
| 8 | seal95008000 |
| 9 | O-ring 35x292604000 |
| 10 | aerator M24x1 (30 l/min)96512820 |
| 11 | diverter knob95284820 |
| 12 | sleeve97979820 |
| 13 | selector97978000 |
| 14 | non return valve97980000 |
| 15 | shower hose 1,25 m28282820 |
| 16 | seal98058000 |
| 17 | shower holder, assy96295820 |
| 18 | handshower04486820 |
| 19 | filter packing94246000 |
| 20 | O-ring 9x1,598117000 |
| 21 | hexagon socket screw M10x3597670000 |
| 22 | O-ring 29x398371000 |
| 23 | O-ring 44x2,598162000 |
| 24 | O-ring 7x298419000 |
| 25 | escutcheon93245820 |
| 26 | extension set 60 mm97686000 |
