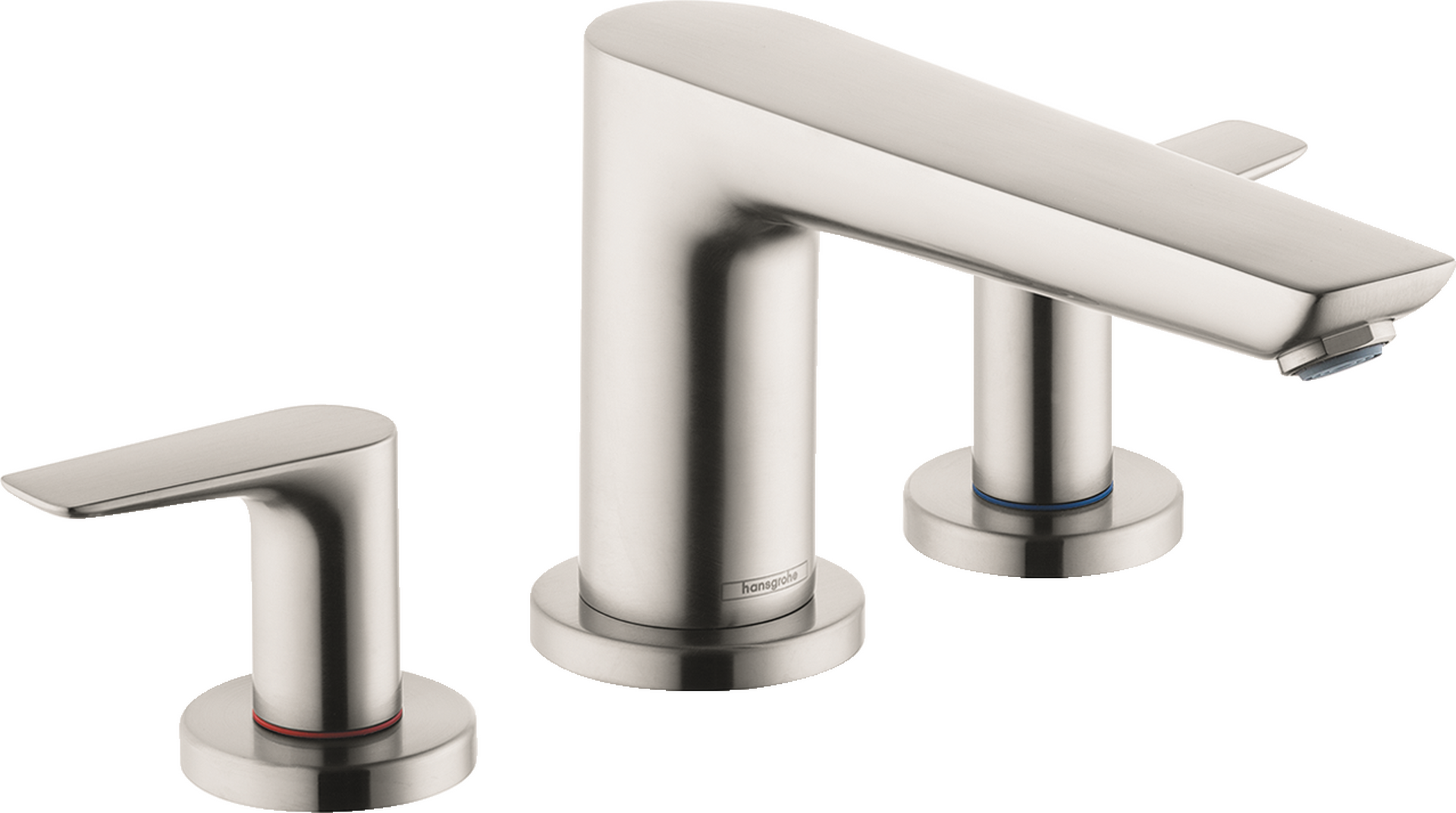

Model No. 71747821
Offering our customers the highest quality at all times is a fundamental part of the Hansgrohe company philosophy.
Planning data
Instructions
| Item No. | DescriptionModel No. |
|---|
| a | O-ring 21x2,598211000 |
| b | O-ring 58x398202000 |
| 1 | spout cpl.92783820 |
| 2 | hollow set screw M6x697660000 |
| 3 | aerator M24x1 (30 l/min)96512820 |
| 4 | O-ring 41x1,598168000 |
| 5 | escutcheon Ø 70 mm97779820 |
| 6 | adapter for spout88512000 |
| 7 | O-Ring 23x2,598183000 |
| 8 | handle92779820 |
| 9 | handle fixing set94184000 |
| 10 | set of color-rings cold / hot water96299000 |
| 11 | escutcheon31098820 |
| 12 | flat seal98749000 |
