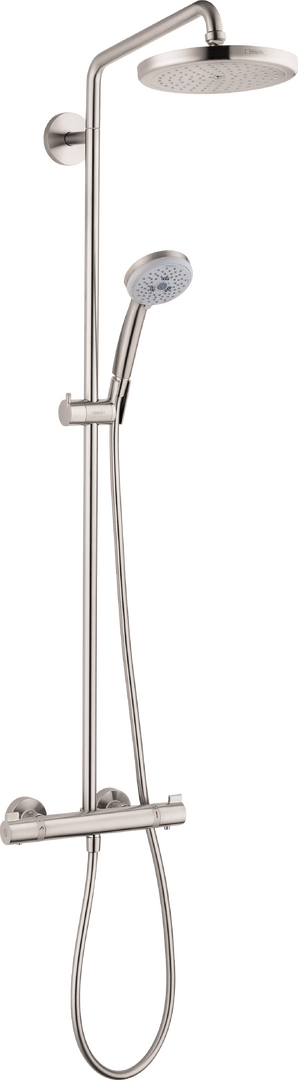

Model No. 27185821
Offering our customers the highest quality at all times is a fundamental part of the Hansgrohe company philosophy.
Please always observe the safety and installation information for your product. You will find these details within the assembly instructions.
| Item No. | DescriptionModel No. |
|---|
| b | O-ring 12x2,2598382000 |
| a | O-ring 26x1,598390000 |
| c | O-ring 17x1,598137000 |
| 1 | shower arm95985820 |
| 2 | showerhead cpl.26465821 |
| 3 | filter packing94246000 |
| 4 | ball joint98941000 |
| 5 | lock washer98942820 |
| 6 | lever collar97536000 |
| 7 | seal97606000 |
| 8 | air jet95794820 |
| 9 | O-ring 7x298419000 |
| 10 | handshower04073820 |
| 11 | shower hose 1,60 m28276823 |
| 12 | O-ring 14x298129000 |
| 13 | O-ring 15x2,598131000 |
| 14 | pipe 1030 mm95915820 |
| 15 | support, assy97651820 |
| 16 | sleeve92166820 |
| 17 | hollow set screw M6x598447000 |
| 18 | escutcheon Ø 80 mm95691820 |
| 19 | O-ring 20x298165000 |
| 20 | mounting set98716000 |
| 21 | wall flange95687000 |
| 22 | O-ring 72x298395000 |
| 23 | tile-matching-disk 7 mm98681000 |
| 24 | handle95836821 |
| 25 | handle fixing set95843001 |
| 26 | safety set for temperature control95839001 |
| 27 | nut98913000 |
| 28 | thermostat cartridge98282000 |
| 29 | stop ring for flow control95927000 |
| 30 | shut off unit with selector98283000 |
| 31 | set of nuts96157820 |
| 32 | non return valve96737000 |
| 33 | filter packing96922000 |
| 34 | isolation valve98341820 |
| 35 | escutcheon98340820 |
